Installing, configuring, and working with Oracle Business Intelligence Applications 11g (OBIA or BI Apps) is a complex task. It can be daunting even for the most seasoned veterans of the Oracle Business Intelligence platform.
In this series of blog entries, I will be showing how to install BI Apps 126.96.36.199.2 on Oracle Linux 7.2. This is the first in a series of fourteen posts. For your reference, here is a list of URLs for each of the posts that make up this series:
OBIA 188.8.131.52.2 installation on Oracle Linux 7.2 - Preparation OBIA 184.108.40.206.2 installation on Oracle Linux 7.2 - Software Acquisition OBIA 220.127.116.11.2 installation on Oracle Linux 7.2 - OS Configuration OBIA 18.104.22.168.2 installation on Oracle Linux 7.2 - Installation - Oracle JDK OBIA 22.214.171.124.2 installation on Oracle Linux 7.2 - Installation - WebLogic OBIA 126.96.36.199.2 installation on Oracle Linux 7.2 - Installation - OBIEE 188.8.131.52 RCU OBIA 184.108.40.206.2 installation on Oracle Linux 7.2 - Installation - OBIEE 220.127.116.11 OBIA 18.104.22.168.2 installation on Oracle Linux 7.2 - Installation - ODI 22.214.171.124 OBIA 126.96.36.199.2 installation on Oracle Linux 7.2 - Installation - OPatch OBIA 188.8.131.52.2 installation on Oracle Linux 7.2 - Installation - OBIA 184.108.40.206.2 RCU OBIA 220.127.116.11.2 installation on Oracle Linux 7.2 - Installation - OBIA 18.104.22.168.2 OBIA 22.214.171.124.2 installation on Oracle Linux 7.2 - Configuration - OBIEE OBIA 126.96.36.199.2 installation on Oracle Linux 7.2 - Configuration - OBIA OBIA 188.8.131.52.2 installation on Oracle Linux 7.2 - Finalizing / Wrap-up
Why Oracle Linux 7.2?
There's no specific reason why I selected Oracle Linux 7.2 over any of the other supported operating systems. In fact, I would certainly consider doing future blog entries of the OBIA installation on other platforms depending on the feedback I receive. However, for this series of posts I thought I'd stick with Oracle's own operating system. I chose version 7.2 over older supported OS versions for OBIA 184.108.40.206.2 simply because I had complete flexibility in choosing whatever OS I wanted, and so I simply chose to go with the highest version supported by OBIA 220.127.116.11.2.
Links to installation documentation
Before we get started, as a point of reference I wanted to provide a list of the main sources of documentation used to put together this guide:
System Requirements and Specifications for Fusion Middleware (FMW) products
Fusion Middleware (FMW) Requirements
WebLogic (WLS) 10.3.6
Oracle Business Intelligence Enterprise Edition (OBIEE) 18.104.22.168
Oracle Data Integrator (ODI) 22.214.171.124
Oracle Business Intelligence Applications (OBIA or BI Apps) 126.96.36.199.2
Is my combination of Operating System, Java, etc. certified for OBIA 188.8.131.52.2?
Oracle publishes and maintains a series of spreadsheets called "System Requirements and Specifications" for OBIA, OBIEE, ODI, FMW, and others. It very well may be technically possible to use combinations of Operating Systems, Java, FMW, etc. that are not certified for OBIA 184.108.40.206.2, however I wouldn't recommend it as you most likely will end up in a situation where you will not be supported by Oracle.
Firstly, let's look at the SRSP for OBIA 220.127.116.11.2 (File Name: biapps-11-1-1-10-2-3093800.xlsx, File Date: 2016-06-20).
Looking at the System Certification tab in this file, if the OS is Oracle Linux 7, BI Apps is only certified on version 7.1 or higher with 64-bit Java 1.7.0_55 or higher. Furthermore, the database needs to be Oracle 18.104.22.168 or higher, or 22.214.171.124 or higher. Also, at the bottom of the page you'll see a note that the Oracle Database software needs to be Enterprise Edition (not Standard Edition or others) configured for Unicode (AL32UTF8)

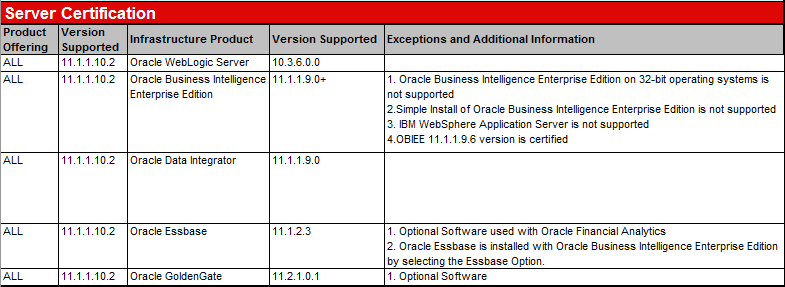

Furthermore, on the Infrastructure Pre-requisites tab, it is clear that the following versions of software are required:
WebLogic Server 10.3.6
Please note that the version of OBIEE is 126.96.36.199.0+. Furthermore, in the comments section of the SRSP, it notes that OBIEE 188.8.131.52.6 is certified. This is a point of some confusion. As far as I'm aware, there was no OBIEE version 184.108.40.206.6. There was a version 220.127.116.11.5, but then after that release, Oracle switched to their new versioning nomenclature. As a result, the next patch release after 18.104.22.168.5 was 22.214.171.124.160117. As you will see as we proceed through the OBIA installation process, the platform patches that will get applied to OBIEE will patch it up from 126.96.36.199 up to 188.8.131.52.160117. So, if you're wondering what to make of this "OBIEE version 184.108.40.206.6" - as I did upon initially reading the SRSP - you can rest assured that by simply downloading OBIEE 220.127.116.11, the remaining versioning will take care of itself as the installation of the entire OBIA 18.104.22.168.2 platform proceeds.
Optional components include:
For the purposes of this series of blog entries however, we will not be installing Essbase and GoldenGate.
WebLogic Server 11gR1 (10.3.6)
The SRSP for WebLogic Server 11gR1 (File Name: fmw-11gr1certmatrix.xls, File Date: 2016-05-26) indicates that while WebLogic Server standalone is certified on Oracle Linux 7.0 and above on 64-bit Java 1.7.0_55 and above, the ALL entry states that it is only certified on Java 1.7.0_80 and above. This suggests that some Fusion Middleware products will not work on Java 1.7 versions under 1.7.0_80.
For OBIEE 22.214.171.124, the SRSP (File Name: bi-11gr1certmatrix-11-1-1-9-0-2541437.xls, File Date: 2016-03-01) indicates that it is certified on Oracle Linux 7.0 and above on 64-bit Java 1.7.0_80 and above.
It is important to note that the BI Development Client Tools are not supported in Linux and are only supported in Windows. It is also important to note that "BI Development Client Tools" specifically means the OBIEE Administration Tool and Web Catalog Manager. ODI Development can be done in Linux as we will see below. Furthermore, OBIEE report development is done in a browser.
For ODI 126.96.36.199, the SRSP (File Name: odi-11gr1certmatrix-11-1-1-9-0-2541436.xls, File Date: 2016-01-26) indicates that both the ODI Agent and ODI Studio are certified on Oracle Linux 7.0 and above on 64-bit Java 1.7.0_80 and above.
Notes on the JDK version
From a JDK version perspective, looking at all of the results across all the SRSPs, one would conclude that any version of Java 1.7.0_80 or greater should be fine. However this is not the case - at least not for the installation.
Firstly, it is important to note that Java 8 is not supported for WebLogic 10.3.6. In fact, if you try to do the installation using Java 8, it will fail (see Oracle Doc Id 2099433.1).
Secondly, I initially attempted to do the installation using the latest Java 7 version (which was 1.7.0_111 at the time) and it failed when trying to configure OBIEE. After reading through some of the community forums, I found this thread which indicated that OBIEE 188.8.131.52 does not install if the Java 7 version is ANYTHING BUT version 1.7.0_80. When I redid the installation using 1.7.0_80, it completed without any issue. Therefore, please use only version 1.7.0_80 to complete the installation process. Then, post-installation, you can investigate upgrading Java (in fact I may do a future blog entry on this matter).
To summarize, we have learned that Oracle Linux 7.2 is a supported operating systems for OBIA 184.108.40.206.2 In addition, we also know that we need a specific 64-bit Oracle JDK: 1.7.0_80.
Furthermore, we identified the following software components and versions that comprise OBIA 220.127.116.11.2:
WebLogic version: 10.3.6
OBIEE version: 18.104.22.168
ODI version: 22.214.171.124
And finally, we identifed that each of these components are certified on Oracle Linux 7.2 with 64-bit Oracle JDK 1.7.0_80.
Now that it is clear on what is required to install Oracle Business Intelligence Applications 126.96.36.199.2 on Oracle Linux 7.2, in my next blog entry, I'll show where to download all of this required software.
